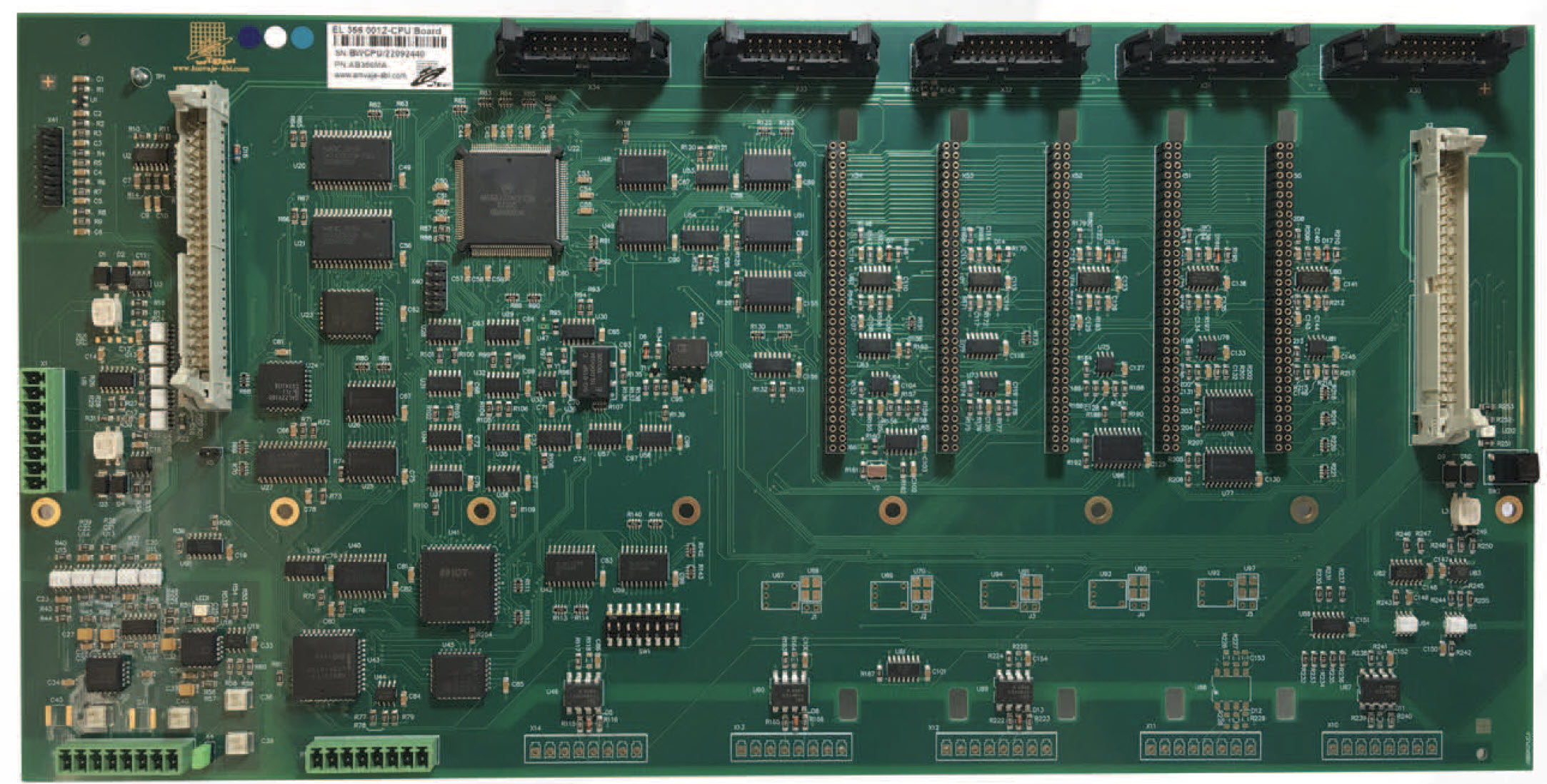

EL356 (Barmag Winder Motherboard)
کارت EL356، پردازنده اصلی سیستم Barmag-ACW-003-3773 می باشد.
کارت ها و ماژول های مرتبط
ضمانت کیفیت کالا
ضمانت اصالت کالا
ارسال به سراسر کشور
پشتیبانی پاسخگو
معرفی و اطلاعات کلی EL356 (Barmag Winder Motherboard)
-
-
-
- Motherboard of Oerlikon Barmag Spinning Systems and Texturing machines
- Supply Voltage:
- Resolver Supply: +5V, 100mA
- Serial Interface Supply: +5V, 100mA
- Processor Supply: +5V, 500mA
- Analog Circuit Supply: +15V, 100mA
- Serial Interfaces: CAN, RS485
- Feedback Signal:
- Motor rotation information is sent to the resolver
- Traverse motion inverter signals
- Rotor inverter signals
- Touch roll inverter signals
- Operation Temperature Range: 0 C°~70 C°
- Embedded temperature sensor to force the system to reset state when the temperature exceeds the permissible limit.
- Card self-test run, when power is connected, to force the card to reset mode in card error detection mode.
-
-
